Engineering Capabilities

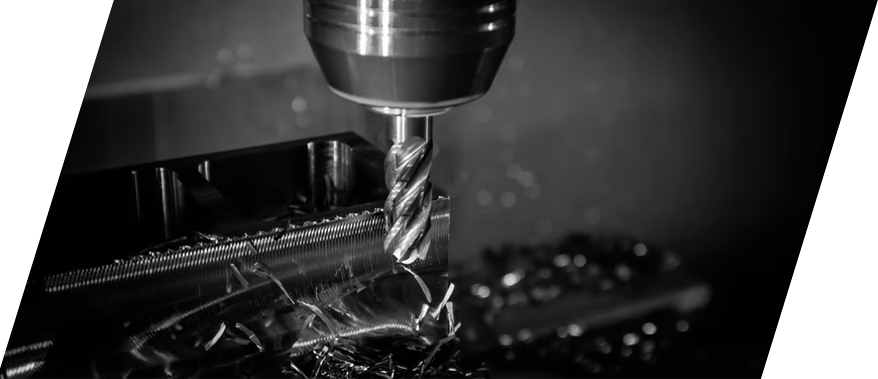

Conventional Turning and Milling:
Turning Capacity up to 850mm Diameter x 6000mm Long
Milling Capacity up to 200mm x 400mm x 600mm

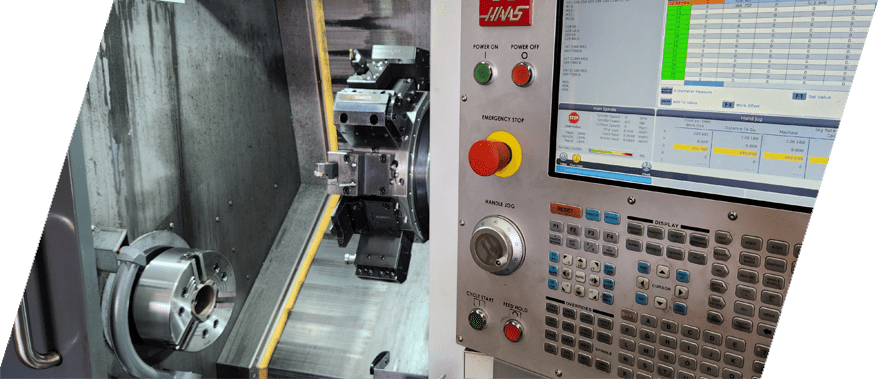

CNC Machining:
4-Axis Machining Centre
1000mm x 500mm x 500mm
3-Axis Machining Centre
800mm x 500mm x 500mm
Lathe 2-Axis
500mm Diameter x 600mm Long With Bar Feed up to 65mm Diameter
Lathe 2-Axis
500mm Diameter x 600mm Long
4-axis lathe
359mm Diameter x 826mm Long

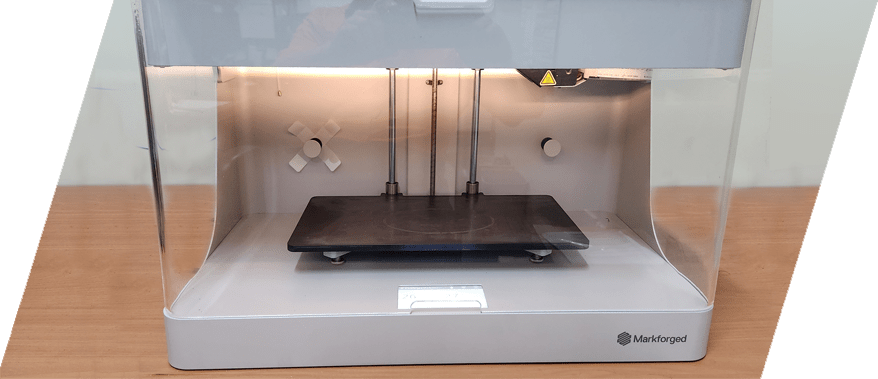

3D Printing
Markforged - Mark Two (Gen 2)
Build volume – 320mm x 132mm x 154mm
Tensile strength – 800 MPa equivalent to 6061 T6 Aluminium
Available plastics – Onyx, Nylon White, Precise PLA, Smooth TPU
Onyx (used mostly) is Micro carbon fibre filled nylon offers excellent heat resistance, surface finish, and chemical resistance
Available reinforcement fibres –Continuous Carbon Fiber™, Aramid Fiber (Kevlar®), Fiberglass™ & HSHT Fiberglass™

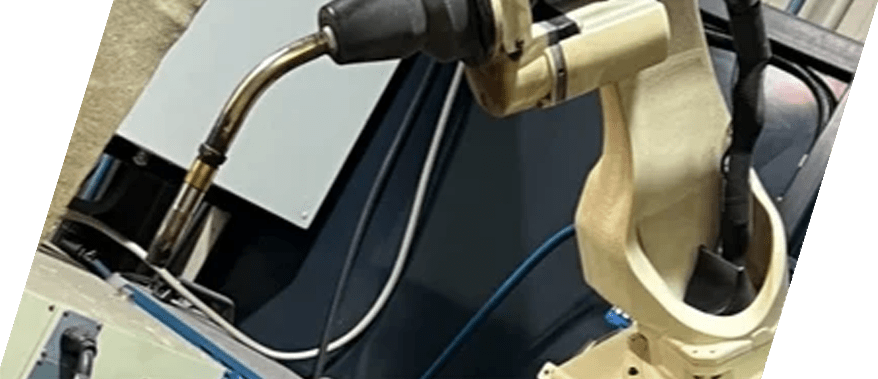

Robotic Welding
OTC robotic welder with a 400 amp pulse mig power supply and a 1.5-metre reach

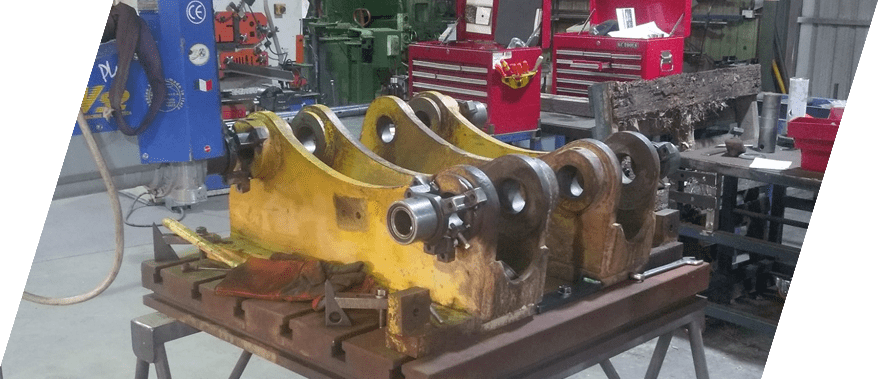

Line Boring
Automatic Line Boring and Welding
Onsite service available
Capacity – Bore diameter 32mm to 450mm
Up to 2.2 metres between bores
